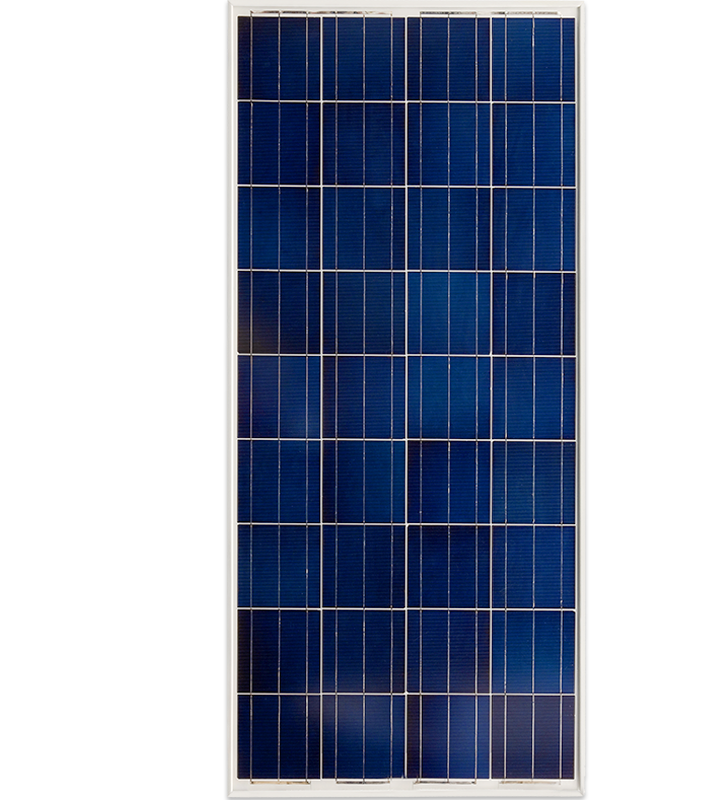

Victron 90W-12V Mono 780x668×30mm 4a *If 0, order SPM040953003*

Victron 90W-12V Mono 780x668×30mm 4a If 0, order SPM040953003

Internal reference: SPM040901200

Barcode: 8719076040347

This combination does not exist.

The product must be bought in quantities of 4.00 units. The quantity ordered will be rounded up in the event of a deviation.

Product elements
Description

Flexible/Fixed

Fixed

Power (Wp)

90

Max. power voltage (Vmpp)

19,6V

Max. power current (Impp)

4,59A

Open circuit voltage (Voc)

24,06V

Short circuit current (Isc)

5,03A

Dimensions (mm)

780 x 668 x 30

Brand

Victron Energy

Low voltage-temperature coefficient enhances high-temperature operation.
Exceptional low-light performance and high sensitivity to light across the entire solar spectrum.
25-Year limited warranty on power output and performance.
5-Year Limited warranty on materials and workmanship.
Sealed, waterproof, multifunctional junction box gives high level of safety.
High performance bypass diodes minimize the power drop caused by shade.
Advanced EVA (Ethylene Vinyl Acetate) encapsulation system with triple-layer back sheet meets the most stringent safety requirements for high-voltage operation.
A sturdy, anodized aluminium frame allows modules to be easily roof-mounted with a variety of standard mounting systems.
Highest quality, high-transmission tempered glass provides enhanced stiffness and impact resistance.
Pre wired quick-connect system with PV-ST01 connectors.
