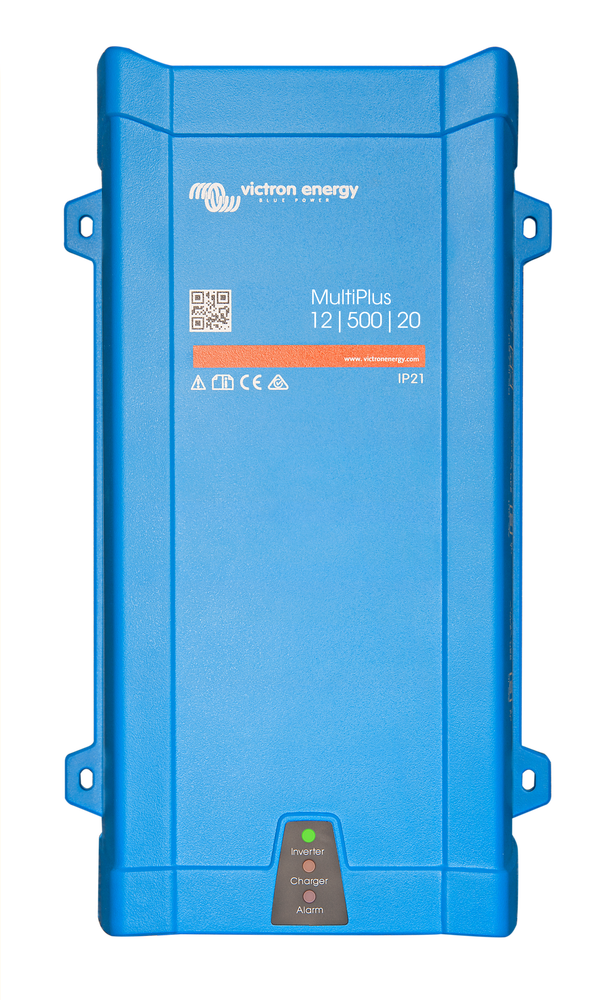

Victron MultiPlus 12/500/20-16 230V VE.Bus
Internal reference: PMP121500000
Barcode: 8719076046363
Brand
Victron Energy
Number of AC inputs
1
Number of AC outputs
1
Battery voltage
12VDC
Dimensions (mm)
311 x 182 x 100
Communication
VE.BUS
Continuous output power at 25°C/40°C (W)
430 / 400
Charge Current (A)
20
Inverter model
MultiPlus
Inverter power (VA)
500
Three Phase and parallel operation
Ja
Peak power (W)
900
The new style MultiPlus is set to replace the earlier MultiPlus Compact range. It is a powerful true sine wave inverter, a sophisticated battery charger that features adaptive charge technology and a high-speed AC transfer switch in a single compact enclosure.
