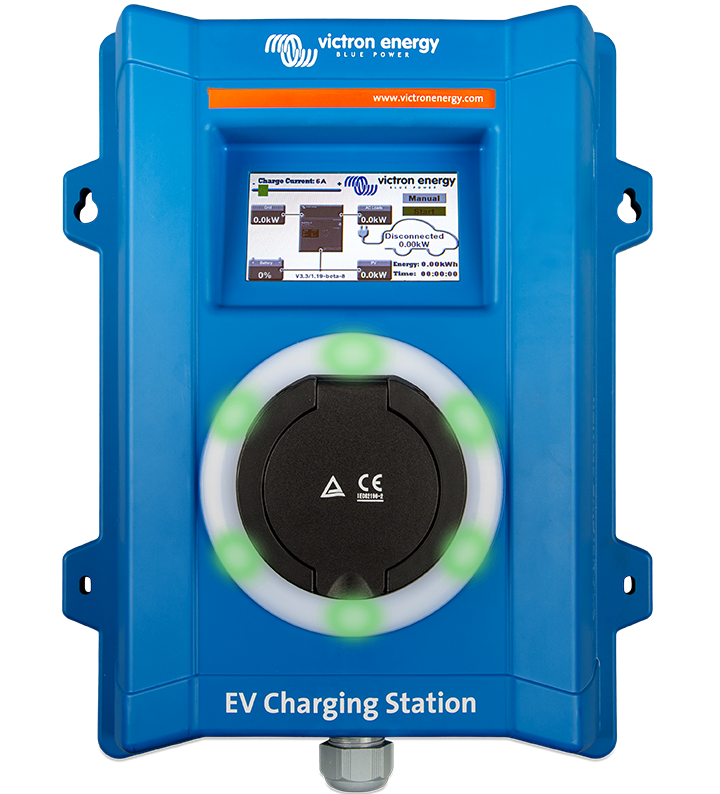

Victron EV Charging station
Interne referentie: EVC300400300
Barcode: 8719076051305
Merk
Victron Energy
Afmetingen (mm)
390 x 300 x 150
Bescherming
IP44
Ingangsspanning AC
170-265VAC
Laadstroom (A)
32A/fase
Nominaal vermogen (kW)
22
Omgevingstemperatuur
-25°C - +50°C
The EV Charging Station has three-phase and single-phase capabilities. It delivers a maximum of 22kW AC in three-phase or 7.3kW in single-phase mode.
It has a built-in LCD touch screen for monitoring and control directly from the charging station. Initial setup, configuration and monitoring is done from VictronConnect via Bluetooth and/or the integrated web interface via a WiFi Access Point or a WiFi LAN.
The EV Charging Station can be fully integrated with and remotely controlled via a Victron Energy GX Device and VRM.
Not only does this EV Charging Station fully integrate with a Victron Energy GX device and VRM, if you have solar (within the Victron ecosystem), it can also be set up to allow excess energy from the sun to directly charge your vehicle. Manual and scheduled modes offer even more flexibility to respond to the needs of the EV depending on the system.
It has a fully programmable RGB light ring around the charging port that displays different light effects depending on the current status (disconnected, charging, charged, etc.) to quickly determine the device status.
