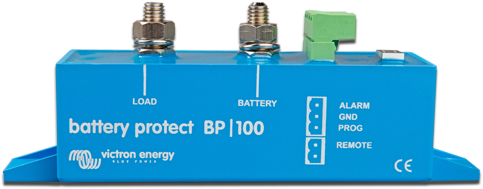

Victron BatteryProtect 12/24V-220A
Internal reference: BPR000220400
Barcode: 8719076021452
Number of batteries
Battery voltage
12-24VDC
Continuous current (A)
220
Peak current (A)
600
Dimensions (mm)
62 x 123 x 120
Brand
Victron Energy
The BatteryProtect disconnects the battery from non essential loads before it is completely discharged (which would damage the battery) or before it has insufficient power left to crank the engine.
The BatteryProtect is a uni-directional device. It can only deal with current in one direction, so either current to a load, or current from a charger, but not both currents at the same time. In addition to this, current only can only flow from the Battery terminal to the Load terminal. In case of use with a load, the battery connects to the Battery terminal, and in case of use with a charger, the charger connects to the Battery terminal.
