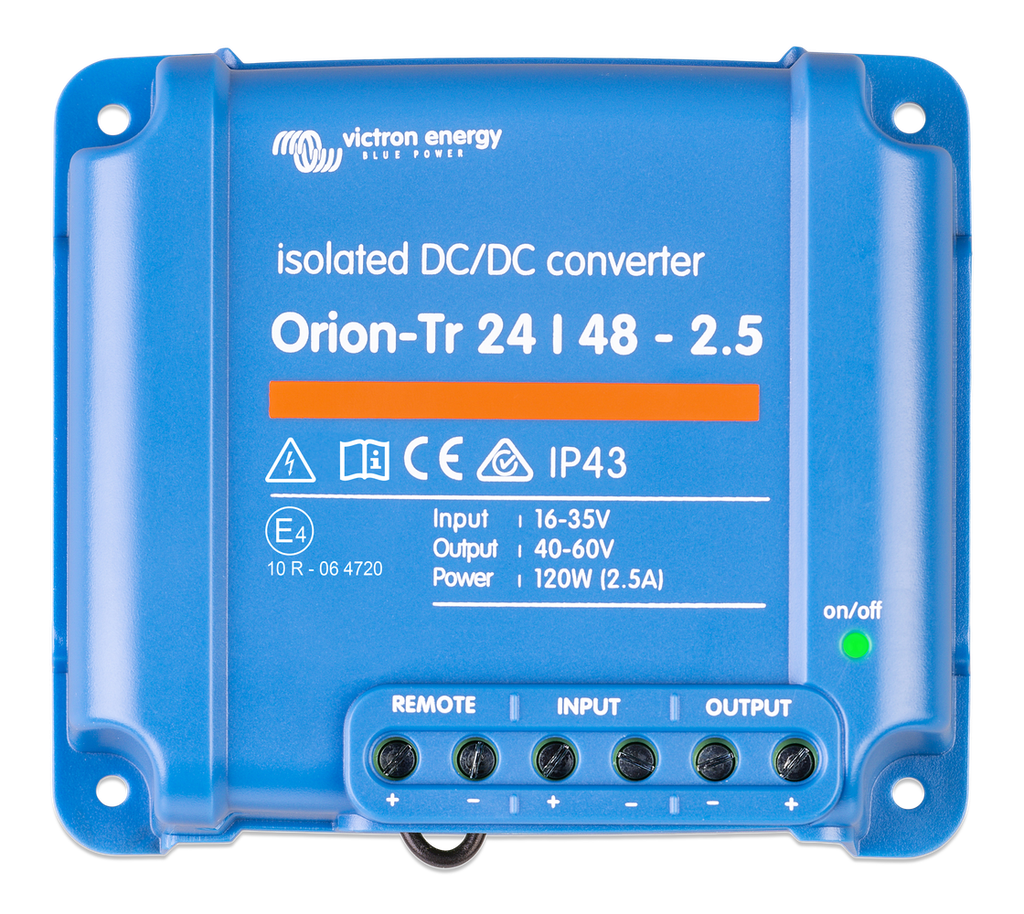

Victron Orion-Tr 24/48-2,5A (120W) Isolated DC-DC converter
Interne referentie: ORI244810110
Barcode: 8719076016755
Ingangsspanning DC
24VDC
Uitgangsspanning DC
48VDC
Vermogen (W)
120
Geïsoleerd
Ja
Model DC-DC omvormer
Orion-Tr
Communicatie
Afmetingen (mm)
100 x 113 x 47
Merk
Victron Energy
Remote on/off
The remote on/off eliminates the need for a high current switch in the input wiring. The remote on/off can be operated with a low power switch or by for example the engine run/stop switch (see manual).
All models are short circuit proof and can be paralleled to increase output current. An unlimited number of units can be connected in parallel.
IP43 protection
When installed with the screw terminals oriented downwards.
Screw terminals
No special tools needed for installation.
Input fuse
On 12V and 24V input models only.
