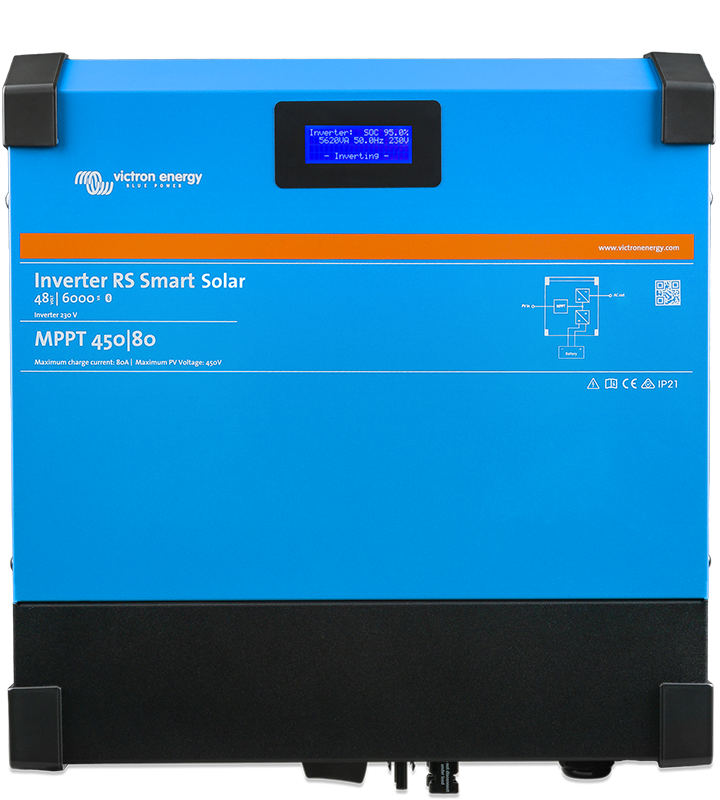

Victron Inverter RS 48/6000 230V Smart Solar
Interne referentie: PIN482601000
Barcode: 8719076048176
Accuspanning
48VDC
Omvormervermogen (VA)
6000
Communicatie
VE.CAN
VE.Direct
Max. PV-vermogen (W)
4000
Max. Voc
450V
Model hybride omvormer
RS Solar
Continu vermogen bij 25°C/40°C (W)
5300/4500
Piekvermogen (W)
9000
Parallel-schakeling
Ja
3-fase bedrijf
Ja
Laadstroom (A)
Afmetingen (mm)
425 x 440 x 125
Merk
Victron Energy
The Inverter RS Smart Solar is a combination of a powerful 48VDC, 6kVA 230VAC inverter and a high-voltage, 80–450VDC, 4kW MPPT solar charger, designed for off-grid solar systems.
Thanks to its modern design and high-frequency technology, the inverter weighs only 11 kg and offers excellent efficiency, low standby consumption, and very quiet operation.
It features a built-in display to show battery, inverter, and solar charger data. These parameters can also be viewed via Bluetooth using the VictronConnect app. For remote monitoring and system integration, the inverter includes a VE.Can port for GX device connection and a VE.Direct port for use with devices like the GlobalLink 520.
A generator can be connected with an external battery charger if additional power is needed.
