Victron BlueSolar PWM-LCD&USB 12/24V-20A
Interne referentie: SCC010020050
Barcode: 8719076046202
Type (MPPT/PWM)
PWM
Accuspanning
12-24VDC
Laadstroom (A)
20
Communicatie
Model SCC
BlueSolar PWM
Max. PV-nullastspanning
Afmetingen (mm)
96 x 169 x 36
Merk
Victron Energy
BlueSolar PWM-LCD&USB
- Liquid Crystal Display
- Two 5 Volt USB outputs
- Lighting control function, fully programmable
- Three stage battery charging (bulk, absorption, float), fully programmable
- Load output with low voltage and manual disconnect (programmable)
- Load output protected against over load and short circuit
- Protected against reverse polarity connection of the solar panels and/or battery

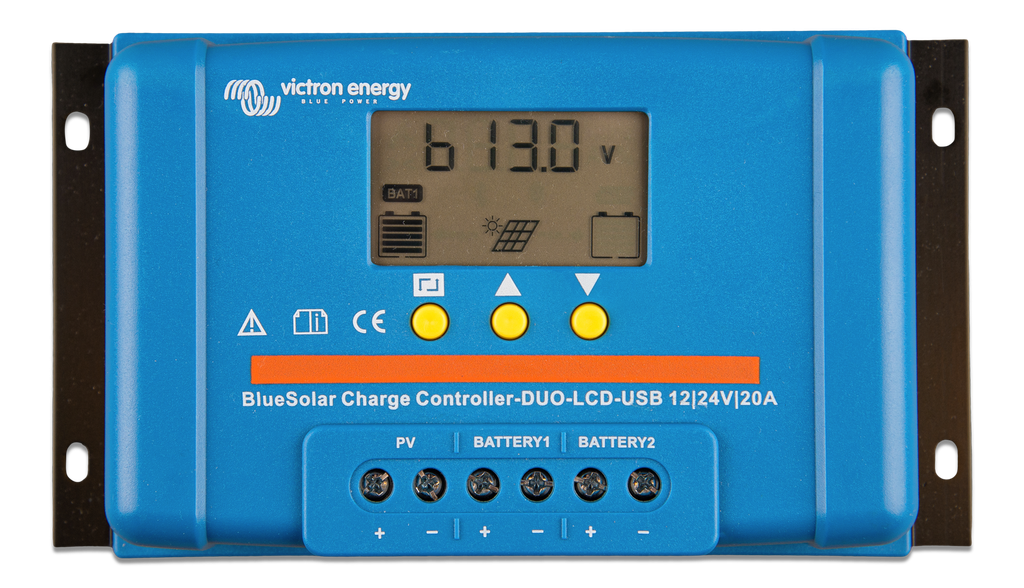

BlueSolar PWM DUO-LCD&USB
All the above-mentioned functions, plus:
- Charges two separate batteries
- Programmable charge current ratio
- External Temperature sensor
