Victron Inverter RS 48/6000 230V Smart Solar
Internal reference: PIN482601000
Barcode: 8719076048176
Tension de batterie
48VDC
Puissance onduleur (VA)
6000
Communication
VE.CAN
VE.Direct
Puissance maximale FV (W)
4000
Max. Voc
450V
Model de convertisseur hybride
RS Solar
Puissance permanente à 25°C/40°C (W)
5300/4500
Puissance de crête (W)
9000
Fonctionnement en parallèle
Ja
Fonctionnement en mode triphasé
Ja
Courant de charge (A)
Dimensions (mm)
425 x 440 x 125
Marque
Victron Energy

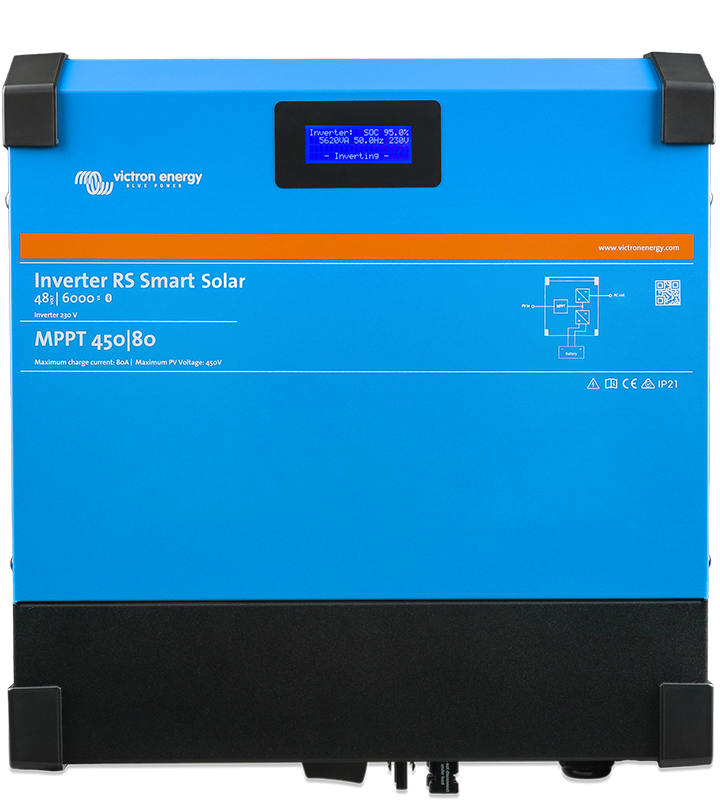

The Inverter RS Smart Solar is a combination of a powerful 48VDC, 6kVA 230VAC inverter and a high voltage, 80-450VDC, 4kW MPPT solar charger. Thanks to its modern design and high frequency technology the inverter only weighs 11kg and has an excellent efficiency, low standby power, and very quiet operation.
The inverter is equipped with a display to read out battery, inverter, and solar charger details. These parameters can also be read out via Bluetooth by the VictronConnect app. In addition to this, the inverter has a VE.Can Port for connection to a GX device for system monitoring; and VE.Direct port for connection to a GlobalLink 520.
