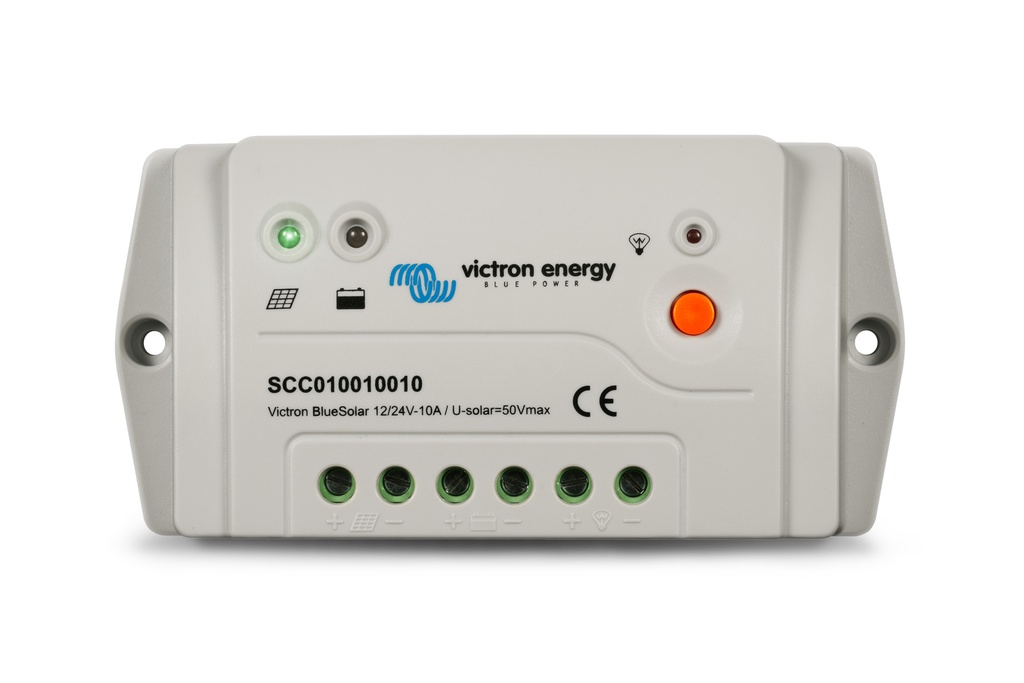

Victron BlueSolar PWM-Pro Charge Controller 12/24V-10A

Internal reference: SCC010010010

Barcode: 8719076025283

https://www.ysebaert.be/web/image/product.template/48402/image_1920?unique=646a397

26,10 € 26.1 EUR 0,00 € Excl. VAT

Recupel: 0,06 €
TVA 21%: 5,49 €

31,65 € Recupel + TVA 21% Included

0,00 €

Not Available For Sale

Cette combinaison n'existe pas.

Type (MPPT/PWM)

PWM

Tension de batterie

12-24VDC

Courant de charge (A)

10

Communication


Model SCC

BlueSolar PWM

Tension PV maximale de circuit


Dimensions (mm)

70 x 138 x 37

Marque

Victron Energy

BlueSolar PWM-Pro
The BlueSolar PWM-Pro series is ready for use with its default settings. It also is fully programmable.
• Lighting control function, fully programmable.
• Three stage battery charging (bulk, absorption, float), fully programmable.
• Integrated battery monitor function (Remote Panel needed to display state of charge).
• Load output with low voltage disconnect and manual control (default setting).
• Optional external temperature sensor.
• Load output protected against over load and short circuit.
• Protected against reverse polarity connection of the solar panels and/or battery.
• Day/night timing options: see manual Remote Panel for details.

BlueSolar PWM-Light
• Load output with low battery voltage disconnect function.
• Lighting control function, one timer only.
• Two digit seven segment display for quick and easy setting of the load output functionality, including timer setting.
• Three stage battery charging (bulk, absorption, float), not programmable.
• Load output protected against over load and short circuit.
• Protected against reverse polarity connection of the solar array and/or battery.
• Day/night timing options: see manual for details
