Victron Inverter RS 48/6000 230V Smart Solar
Interne referentie: PIN482601000
Barcode: 8719076048176
Accuspanning
48VDC
Omvormervermogen (VA)
6000
Communicatie
VE.CAN
VE.Direct
Max. PV-vermogen (W)
4000
Max. Voc
450V
Model hybride omvormer
RS Solar
Continu vermogen bij 25°C/40°C (W)
5300/4500
Piekvermogen (W)
9000
Parallel-schakeling
Ja
3-fase bedrijf
Ja
Laadstroom (A)
Afmetingen (mm)
425 x 440 x 125
Merk
Victron Energy

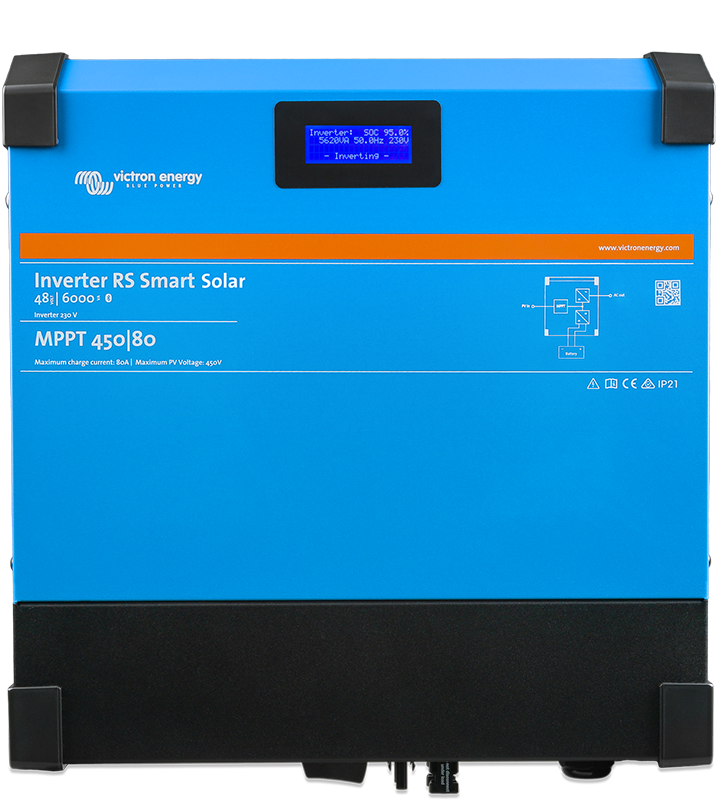

The Inverter RS Smart Solar is a combination of a powerful 48VDC, 6kVA 230VAC inverter and a high voltage, 80-450VDC, 4kW MPPT solar charger. Thanks to its modern design and high frequency technology the inverter only weighs 11kg and has an excellent efficiency, low standby power, and very quiet operation.
The inverter is equipped with a display to read out battery, inverter, and solar charger details. These parameters can also be read out via Bluetooth by the VictronConnect app. In addition to this, the inverter has a VE.Can Port for connection to a GX device for system monitoring; and VE.Direct port for connection to a GlobalLink 520.
