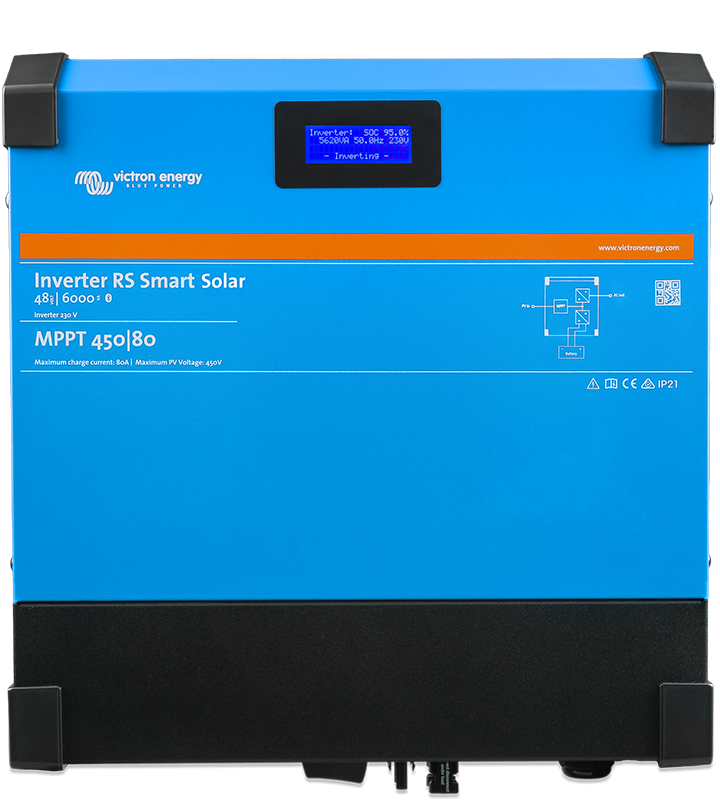

Victron Inverter RS 48/6000 230V Smart Solar
Internal reference: PIN482601000
Barcode: 8719076048176
Battery voltage
48VDC
Inverter power (VA)
6000
Communication
VE.CAN
VE.Direct
Max. PV power (W)
4000
Max. Voc
450V
Hybrid inverter model
RS Solar
Continuous output power at 25°C/40°C (W)
5300/4500
Peak power (W)
9000
Parallel operation
Ja
Three Phase operation
Ja
Charge Current (A)
Dimensions (mm)
425 x 440 x 125
Brand
Victron Energy
The Inverter RS Smart Solar is a combination of a powerful 48VDC, 6kVA 230VAC inverter and a high voltage, 80-450VDC, 4kW MPPT solar charger. Thanks to its modern design and high frequency technology the inverter only weighs 11kg and has an excellent efficiency, low standby power, and very quiet operation.
The inverter is equipped with a display to read out battery, inverter, and solar charger details. These parameters can also be read out via Bluetooth by the VictronConnect app. In addition to this, the inverter has a VE.Can Port for connection to a GX device for system monitoring; and VE.Direct port for connection to a GlobalLink 520.
