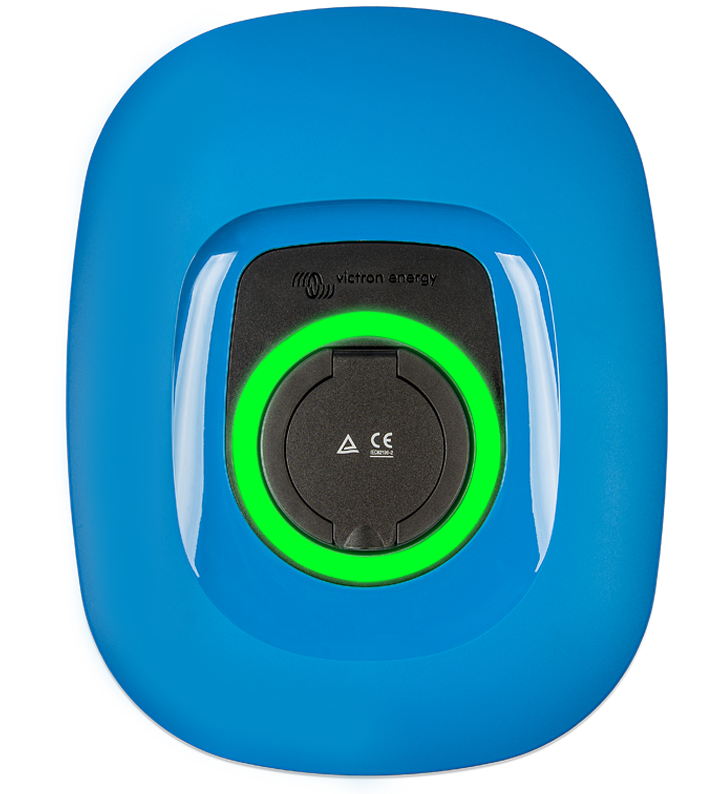

Victron EV Charging station NS - Blue
Internal reference: EVC200300200
Barcode: 8719076058274
Brand
Victron Energy
Dimensions (mm)
372 x 292 x 122
Protection
IP44
AC Input voltage
170-265VAC
Charge Current (A)
32A/phase
Nominal power (kW)
22
Ambiant temperature
-25°C - +50°C
The EV Charging Station V2 has three-phase and single-phase capabilities. It delivers a maximum of 22kW AC in three-phase or 7.3kW in single-phase mode.
As the successor to the EV Charging Station and the EV Charging Station NS, it adds a dedicated energy meter, near field communication (NFC) access control for shared areas, a cable lock for a secure connection during charging, a tamper detection sensor, Ethernet for a more reliable connection to the GX device, and a built-in residual current device (RCD) for easier installation (pending certification). Setup, configuration and monitoring are easily done from the VictronConnect app via Bluetooth and/or the integrated web interface via WiFi or Ethernet.
The charger fully integrates with a Victron Energy GX device and the VRM Portal for remote monitoring and control. If you have solar within the Victron ecosystem, excess energy from the sun can charge your vehicle directly. Manual and scheduled modes add flexibility to match the needs of the EV and the system.
A programmable RGB light ring around the charging port shows the device status at a glance: disconnected, charging, charged, etc.
