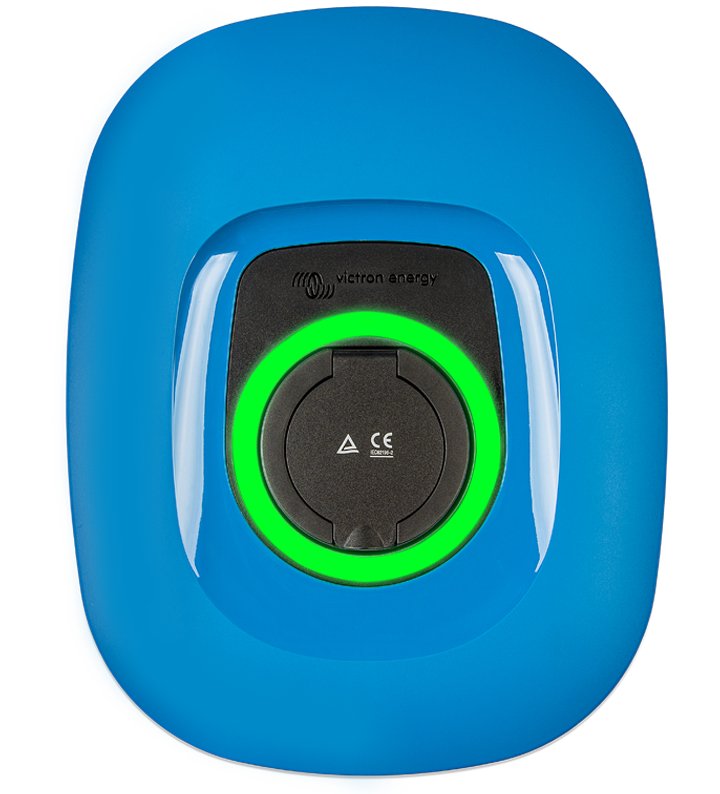

Victron EV Charging station NS - Blue
Internal reference: EVC200300200
Barcode: 8719076058274
Charge Current (A)
32A/phase
AC Input voltage
170-265VAC
Protection
IP44
Dimensions (mm)
372 x 292 x 122
Nominal power (kW)
22
Brand
Victron Energy
Ambiant temperature
-25°C - +50°C
The EV Charging Station NS has three-phase and single-phase capabilities. It delivers a maximum of 22kW AC in three-phase or 7.3kW in single-phase mode.
The device is technically identical to the EV Charging Station, but with a new, modern design available in 3 colours and without the built-in LCD screen. Initial setup, configuration and monitoring is done from VictronConnect via Bluetooth and/or the integrated web interface via a WiFi Access Point or a WiFi LAN.
The charger can be fully integrated with and remotely controlled via a Victron Energy GX Device and VRM.
Not only does this EV Charging Station NS fully integrate with a Victron Energy GX device and VRM, if you have solar (within the Victron ecosystem), it can also be set up to allow excess energy from the sun to directly charge your vehicle. Manual and scheduled modes offer even more flexibility to respond to the needs of the EV depending on the system.
It has a fully programmable RGB light ring around the charging port that displays different light effects depending on the current status (disconnected, charging, charged, etc.) to quickly determine the device status.
