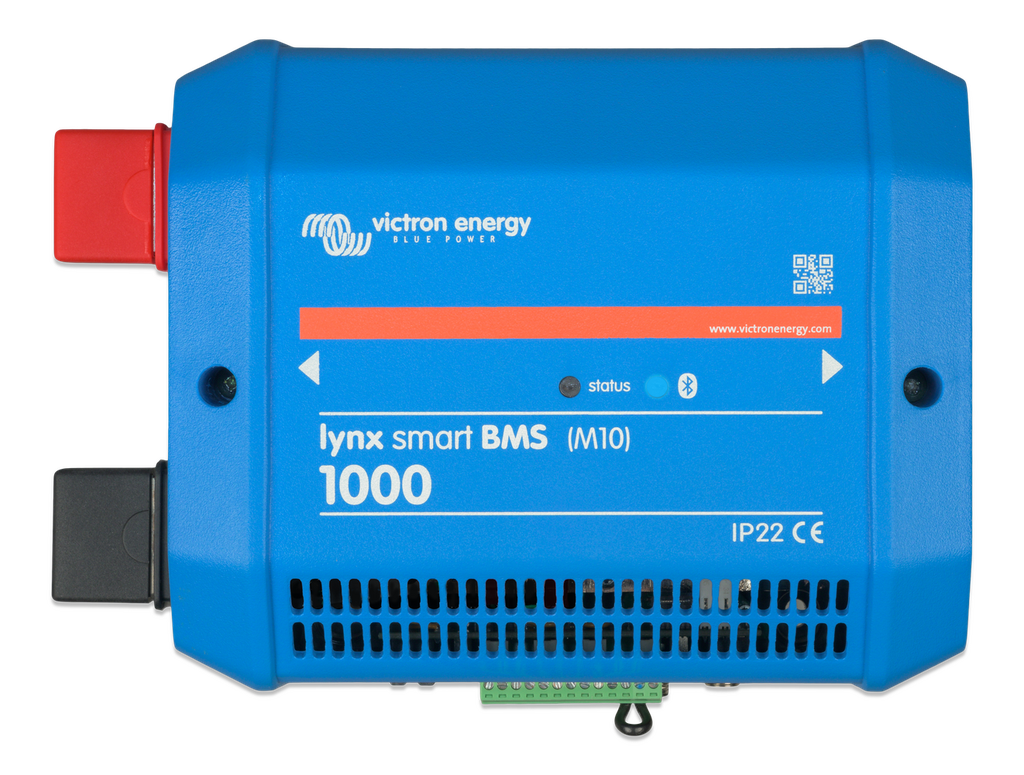

Victron Lynx Smart BMS 1000 (M10)
Internal reference: LYN034170210
Barcode: 8719076057604
Category installation material
Lynx DC distribution
Current
Brand
Victron Energy
The Lynx Smart BMS is a dedicated Battery Management System for Victron Lithium Smart Batteries. There are multiple BMS-es available for our Smart Lithium series of batteries, and the Lynx Smart is the most feature rich and complete option. It is available in two versions: 500A and 1000A (both with M10 busbar connections).
The main features are:
- Built-in 500A or 1000A contactor used as a fallback safety mechanism and also suitable as a remote controllable main system switch.
- Battery monitor, indicating state of charge percentage and more data.
- Pre-alarm signal: provide a warning before the system shuts down due to -for example- a low cell.
- Bluetooth for use with our VictronConnect app, for setup and monitoring, including Instant Readout - key data of the BMS at-a-glance.
- Local and remote monitoring using a Victron GX device, for example the Cerbo GX or Ekrano GX.
The Lynx Smart BMS is part of the modular Lynx Distribution system.
