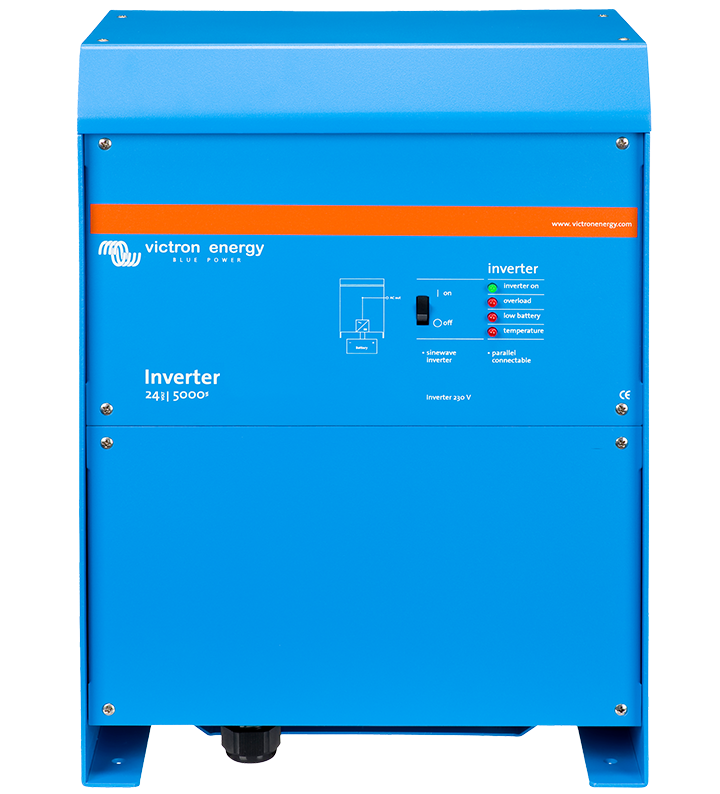

Victron Inverter 24/5000 230V VE.Bus
Internal reference: PIN245020000
Barcode: 8719076023760
Brand
Victron Energy
Battery voltage
24VDC
Dimensions (mm)
444 x 328 x 240
Communication
VE.BUS
Continuous output power at 25°C/40°C (W)
4000
Model DC-AC inverter
Phoenix Inverter
Inverter power (VA)
5000
Three Phase and parallel operation
Ja
Peak power (W)
10000
Pure sine wave output, high peak power and high efficiency. Combined high frequency and line frequency technologies ensure the best of both worlds.
SinusMax - Superior engineering
Developed for professional duty, this range of inverters is suitable for the widest range of applications. The design criteria have been to produce a true sine wave inverter with optimised efficiency but without compromise in performance. Employing hybrid HF technology, the result is a top quality product with compact dimensions, light in weight and capable of supplying power, problem free, to any load.
Parallel and 3-phase operation capability
Up to 6 Inverters can operate in parallel to achieve higher power output. Six 24 V 5000 VA units, for example, will provide 24 kW / 30 kVA output power. Operation in 3-phase configuration is also possible.
