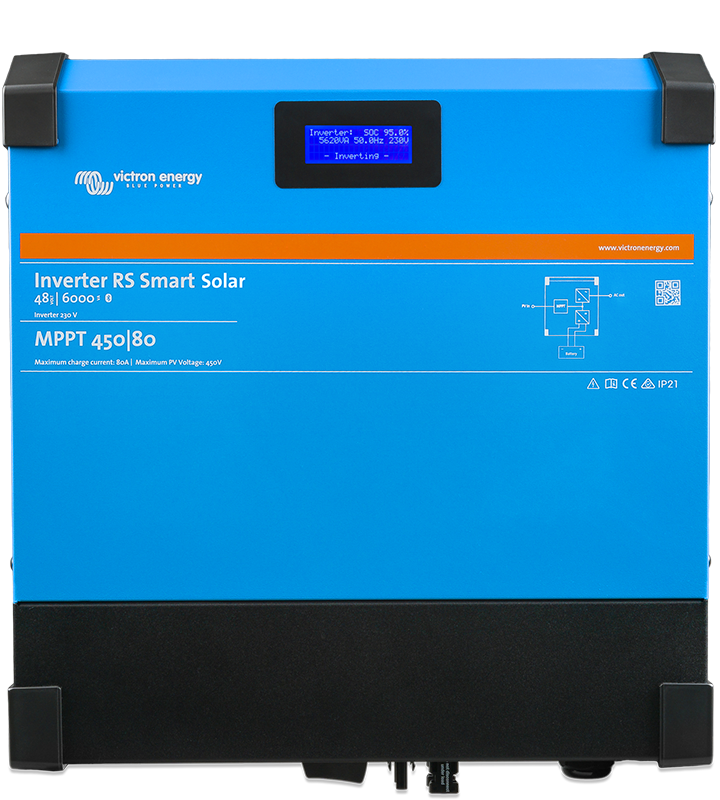

Victron Inverter RS 48/6000 230V Smart Solar
Internal reference: PIN482601000
Barcode: 8719076048176
Brand
Victron Energy
Three Phase operation
Ja
Battery voltage
48VDC
Dimensions (mm)
425 x 440 x 125
Communication
Bluetooth
VE.CAN
VE.Direct
Continuous output power at 25°C/40°C (W)
5300/4500
Max. PV power (W)
4000
Max. Voc
450V
Hybrid inverter model
RS Solar
Inverter power (VA)
6000
Parallel operation
Ja
Peak power (W)
9000
The Inverter RS Smart Solar is a combination of a powerful 48VDC, 6kVA 230VAC inverter and a high-voltage, 80–450VDC, 4kW MPPT solar charger, designed for off-grid solar systems.
Thanks to its modern design and high-frequency technology, the inverter weighs only 11 kg and offers excellent efficiency, low standby consumption, and very quiet operation.
It features a built-in display to show battery, inverter, and solar charger data. These parameters can also be viewed via Bluetooth using the VictronConnect app. For remote monitoring and system integration, the inverter includes a VE.Can port for GX device connection and a VE.Direct port for use with devices like the GlobalLink 520.
A generator can be connected with an external battery charger if additional power is needed.
