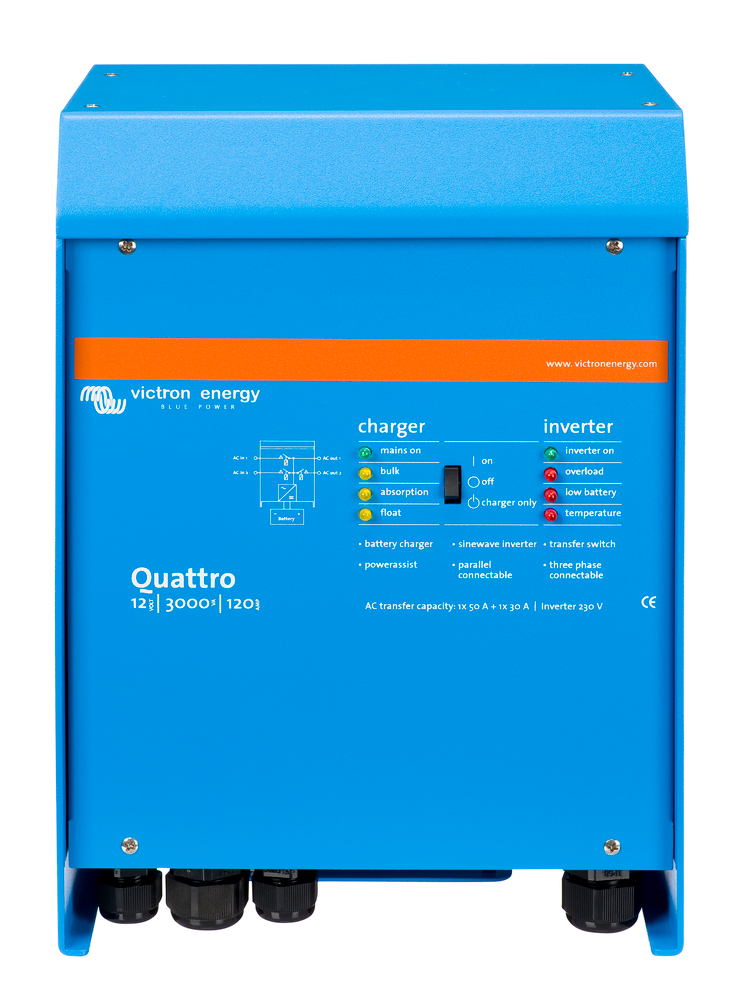

Victron Quattro 12/3000/120-50/50 230V VE.Bus
Internal reference: QUA123020010
Barcode: 8719076024101
Brand
Victron Energy
Number of AC inputs
2
Number of AC outputs
2
Battery voltage
12VDC
Dimensions (mm)
362 x 258 x 218
Communication
VE.BUS
VE.CAN
Continuous output power at 25°C/40°C (W)
2400
AC Input voltage
230VAC
Charge Current (A)
120
Inverter model
Quattro
Inverter power (VA)
3000
Three Phase and parallel operation
Ja
Peak power (W)
6000
Similar to the MultiPlus, the Quattro is also a combined inverter and charger. Additionally it can accept two AC inputs and automatically connect to the active source. Its many features include a true sine wave inverter, adaptive charging, hybrid PowerAssist technology plus multiple system integration features such as three or split phase operation and parallel operation.
