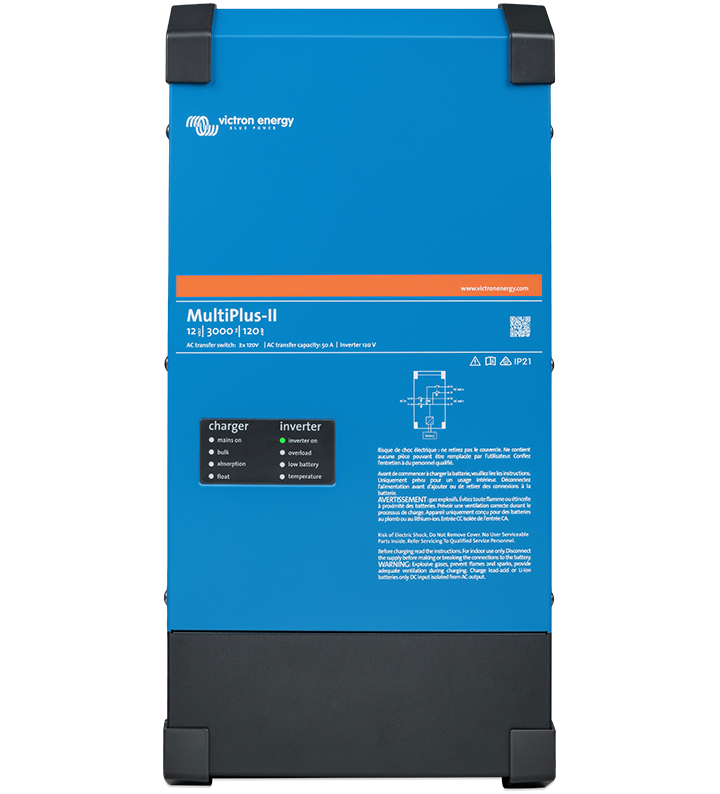

Victron MultiPlus-II 48/10000/140-100 230V
Internal reference: PMP483105000
Barcode: 8719076044956
Battery voltage
48VDC
Inverter power (VA)
10000
Communication
VE.BUS
VE.CAN
Number of AC inputs
1
Number of AC outputs
2
Inverter model
MultiPlus-II
Continuous output power at 25°C/40°C (W)
8000
Peak power (W)
18000
Three Phase and parallel operation
Ja
Charge Current (A)
140
Dimensions (mm)
677 x 363 x 206
Brand
Victron Energy
Synergrid
Synergrid C10/26
The MultiPlus-II is a multifunctional inverter/charger with two AC outputs. Suitable for professional marine, yachting, vehicle, and land-based off-grid systems, it also provides the isolation and redundancy required for ESS setups. PowerControl allows the MultiPlus-II to prevent grid or generator overload, while PowerAssist boosts AC power during peak demand. In the event of an outage, the inverter switches over in milliseconds, keeping computers and sensitive electronics running without interruption. The battery charger combines speed with efficiency through a smart adaptive algorithm that extends battery life. Ready for expansion, the MultiPlus-II supports parallel and three-phase configurations when a system needs to scale.
Note: for a short period of time this product was called MultiGrid-II.
